How to Install Charging station [G8000 & G8000 Pro & L9000 & L8000]

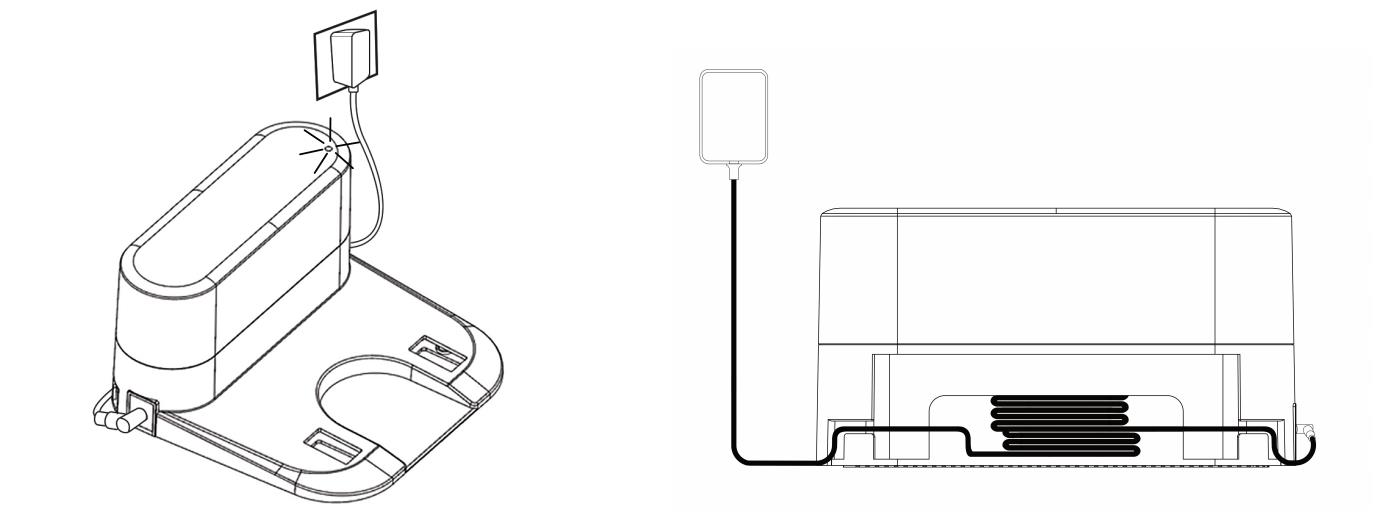

1. It is recommended to place the Charging Station against a wall, and on a hard-level surface rather than on rugs or carpets.
Recommend to use provided adhesive tapes to fix charging station on the ground.
2. Remove objects within 3 ft/1 m of the left and right side and within 6 ft/2 m of the front of the Charging Station.
3. Connect the round connector of the adapter into the power socket on the Charging Station and the other end into a wall outlet.
When the Charging Station connects to AC power, the Power Status Light on the Charging Station is SOLID WHITE.
Always keep the Charging Station plugged in, otherwise Robot could not automatically return to it when Robot battery gets low.
Please put spare cable into storage compartment at back of charging station to avoid spare cable be exposed on the ground to entangle robot.
Model：G8000PRO/G8000/L9000/L8000
