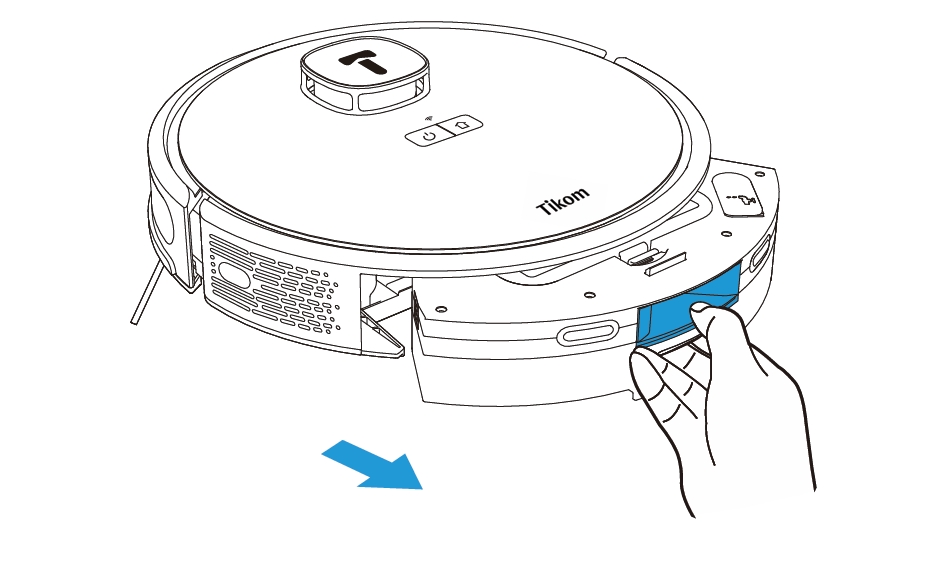

1. Take out water tank

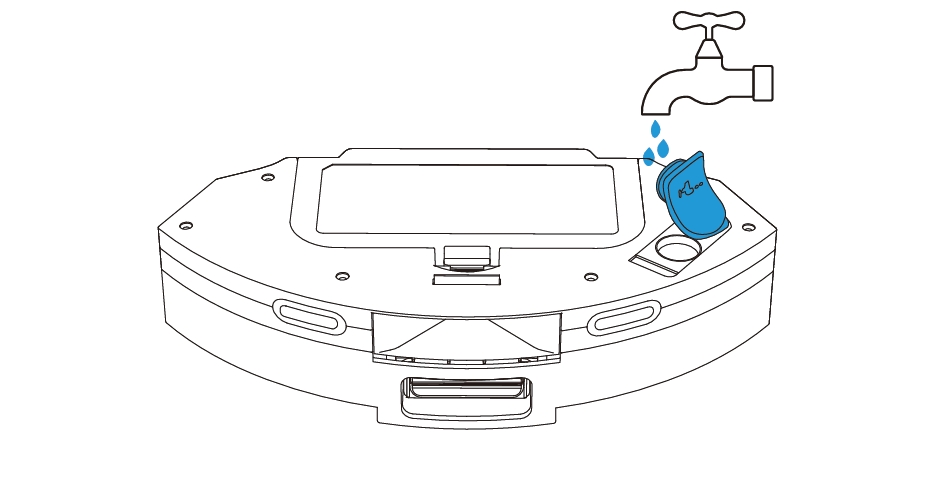

2. Open the water tank cover, fill water and reseal it carefully.

Notes: Floor cleaners or disinfectants may damage the water tank, please don’ t add them into water tank. Only Clean water is suggested.

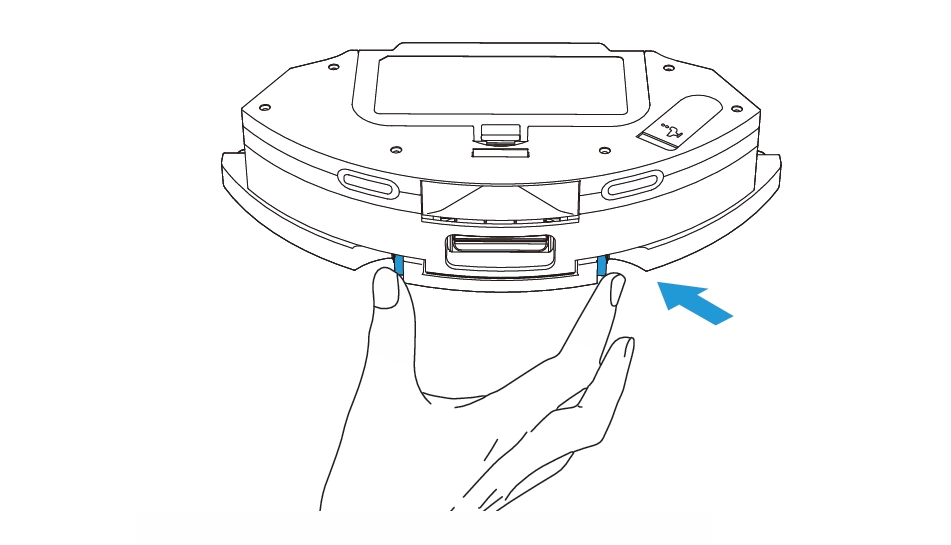

3. Install Mopping cloth holder onto water tank

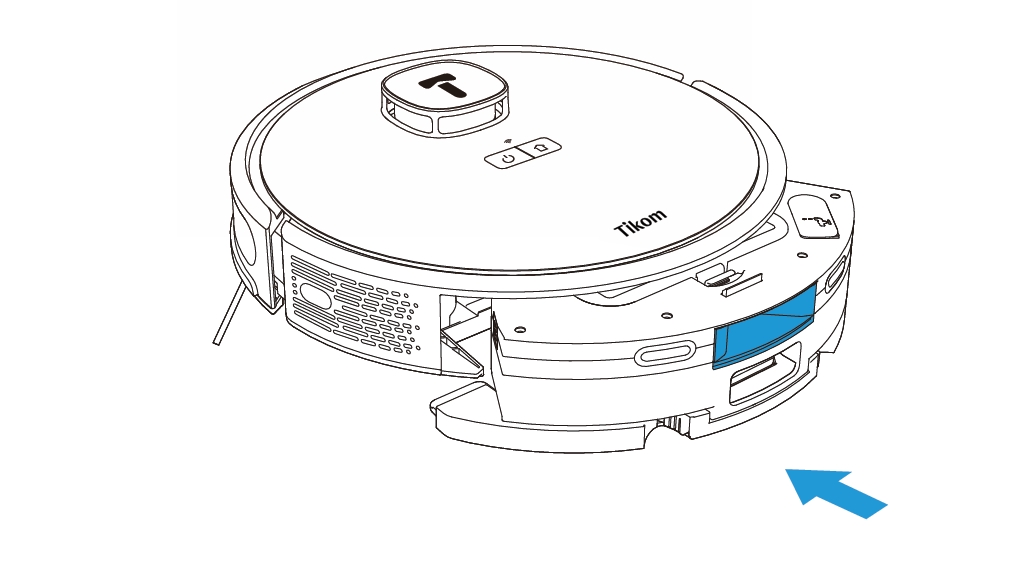

4. Install water tank back to robot.

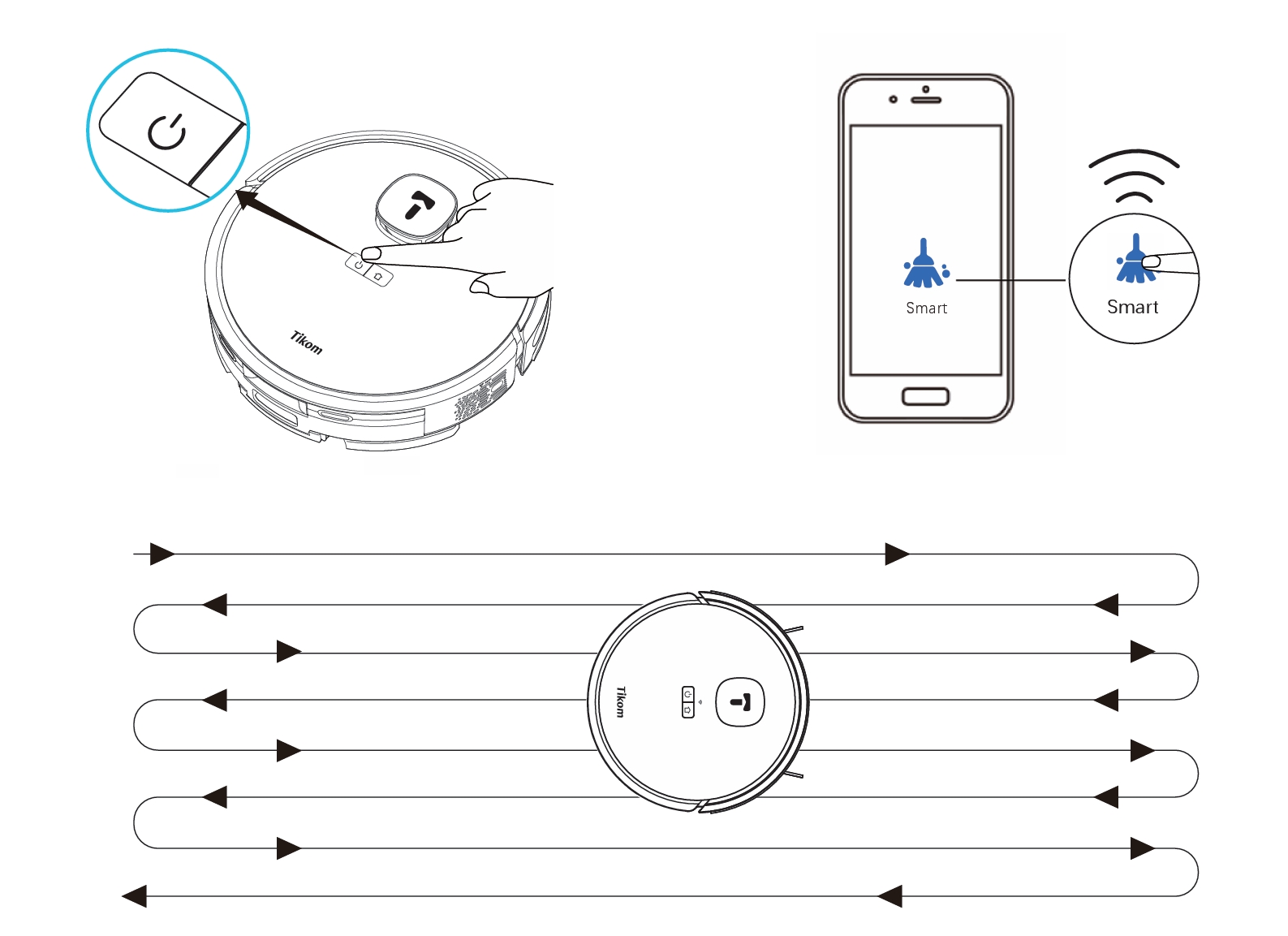

5. Press Power button on Robot or Click Smart in APP to start mopping. The voice announces “Start Sweeping and Mopping”. In this mode, robot will sweep and mop in the same time.

There is 3 level mopping water level setting in APP , High/Middle/Low. When change mopping water level thru APP, Low level have 1 “Di”, Middle level have 2 “Di”, High level have 3 “Di” .

If water tank is full, High level mopping time is about 60mins, Middle is about 80mins, Low is about 100mins.

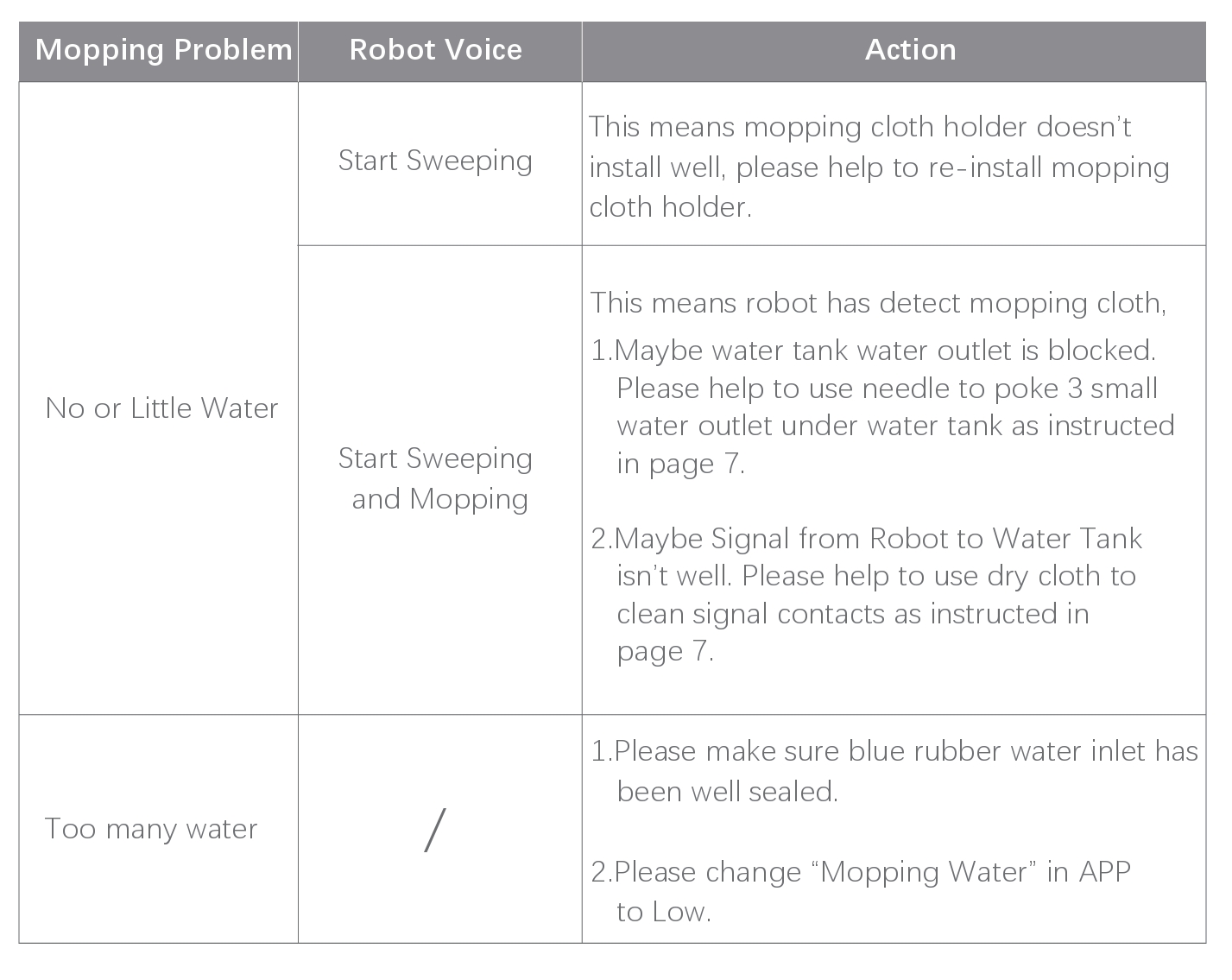

Robot will detect mopping cloth holder for mopping function. so before mopping, please install well mopping cloth holder onto robot. So if no water come out when mopping, please check as below.

Notes:

1.To avoid stinky smell of dirty mopping cloth, suggest to wash mopping cloth after each time mopping, and air-dry mopping cloth for next mopping.

2.For good mopping with dry mopping cloth, suggest wet dry mopping cloth before mopping.

3.Because Carpet couldn’t be mopped, so please help to set “No-Mop Zone” in the Carpet place on APP, then when robot is installed with mopping cloth holder, robot wouldn’t sweep and mop this “No-Mop Zone”.And when robot doesn’t install mopping cloth holder, robot would sweep this “No-Mop Zone”.

Model：L9000
