How to Clean Main Brush [L8000]

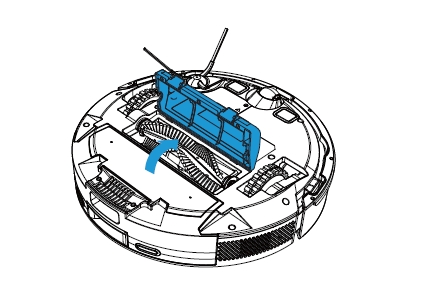

1. Press the release switch on the brush guard to open it.

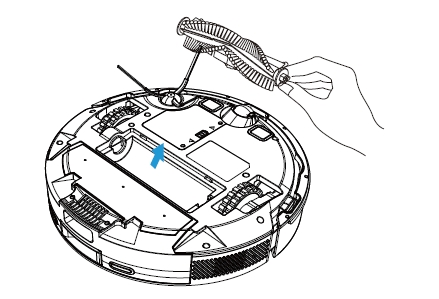

2. Take out main brush.

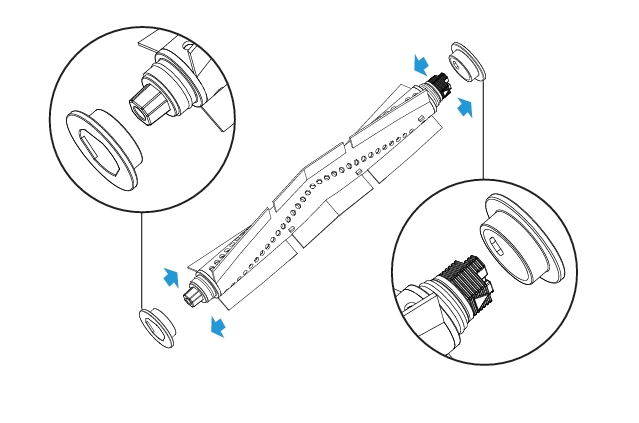

3. Open the two caps on the sides of the main brush, remove and clean any hair or dirt present on both sides. Reinstall the two caps onto the main brush.

Notes: Please pay attention to the direction of cap installation.

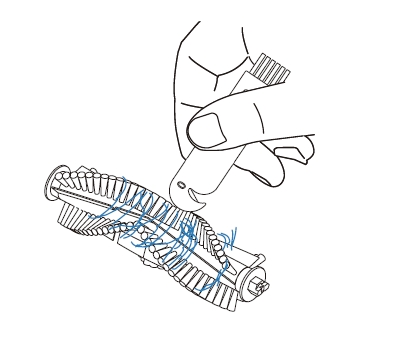

4. Use the blade on the provided cleaning brush to cut any hair or string wrapped around the main brush. Then, use the brush to remove dirt from the main brush.

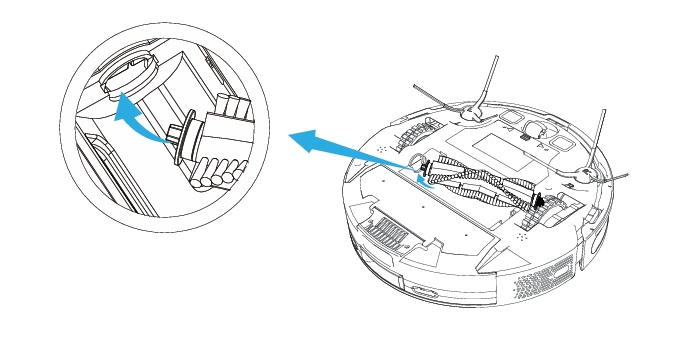

5. Install the main brush into the robot, ensuring to pay attention to the direction. Insert the fixed protruding end first, then click it into place.

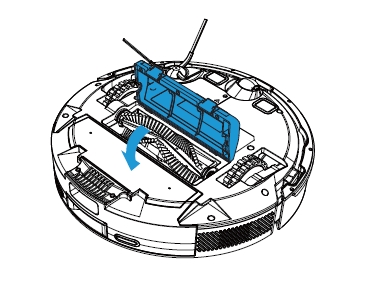

6. Press down to securely install the brush guard into place.

Model: L8000
