V500 Youtube Link: How to Clean Motorized Cleaner Head?

1. Press "Cleaner Head Release Button" to remove Cleaner Head.

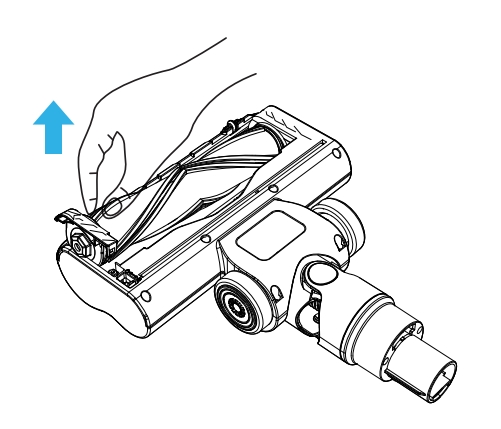

2. Push the Release Switch on the bottomof Cleaner Head and Press Buckle of Brush Roll would bounce up.

3. Take out Brush Roll from Cleaner Head.

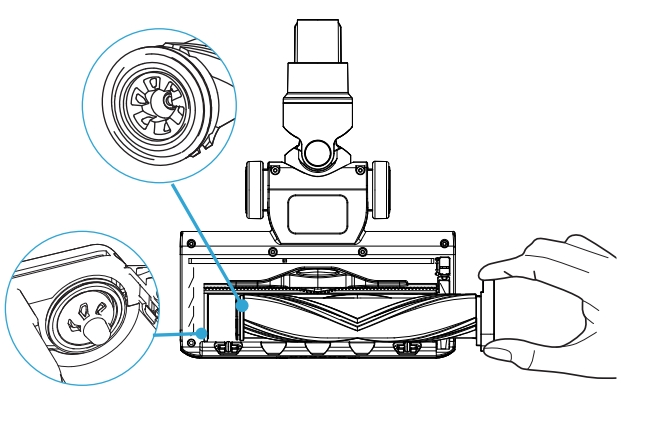

4. Use scissors to cut away any hair tangled around the Brush Roll.

5. Install the round side of the brush roll with the axis-shaped connector onto the cleaner head first.

6. To secure the Brush Roll, first align its Press Buckle of Brush Roll with the slot on the Cleaner Head.

7. Install the press buckle into the slot.

8. Press the buckle, and a "click" sound will be heard once the buckle has securely fixed the brush roll onto the cleaner head.

Model: V500
